AUTOOL BT460 Automotive Battery System Tester
US$70.00
주요 특징
- 12V/24V Battery + System Tests
- 8–30 V Test Range
- SOH, SOC, Ripple + Load Data
- 2.8-Inch, 14-Language Display
- 12V/24V Battery + System Tests: Check 12V/24V lead-acid battery health, cranking, charging, and system voltage with vehicle electrical loads switched on.
- 8–30 V Test Range: Match supported 12 V or 24 V lead-acid systems to the 8–30 V testing range and the battery’s rating standard.
- SOH, SOC, Ripple + Load Data: Review voltage, current, resistance, SOH, SOC, ripple, cranking, charging, and load-related data.
- 2.8-Inch, 14-Language Display: Read results on a 2.8-inch color screen with 14 language options.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL BT460 · Battery and Loaded-Voltage Tester
Check Battery, Starting and Loaded Voltage
Check lead-acid battery health, cranking, charging, and system voltage under vehicle electrical loads with this handheld automotive battery tester. BT460 brings voltage, current, resistance, SOH, SOC, ripple, and load-related data onto a 2.8-inch color screen, while Type-C connectivity supports available software updates from a computer.
- 8–30 V Test Range
- 12 V / 24 V Lead-Acid Systems
- Battery, Cranking And Charging Tests
- Loaded-System Voltage Check
- 2.8-Inch Color Screen
주요 특징
Battery Checks with Loaded-System Observation
배터리 상태 테스트
Analyzes battery health, state of charge, internal resistance, voltage, cold cranking ability, and aging condition to help determine whether the battery should be serviced or replaced.
크랭킹 테스트
Helps evaluate starting motor performance by checking cranking voltage and cranking current while following the on-screen engine-start prompt.
충전 시스템 테스트
Checks the charging system, including generator output, rectifier status, diode behavior, and charging voltage condition to help identify overcharge or incomplete-charge risks.
Electrical-Load Voltage Test
Helps observe battery voltage behavior under vehicle electrical load by turning on electrical appliances and following the tester prompt.
Battery & System Test Data
Supports voltage, current, resistance, state of health, state of charge, ripple analysis, cranking, charging, and load-related test data.
2.8-Inch HD Color Screen
The color display presents menus and measurement results clearly, making the tester easier to read in daily service environments.
14 언어
Supports English, Spanish, German, French, Italian, Portuguese, Chinese, Polish, Turkish, Russian, Japanese, Traditional Chinese, Thai, and Korean. Contact support for special language needs.
역 극성 보호
Reverse polarity protection helps prevent tester, battery, and vehicle damage if the positive and negative clamps are connected incorrectly.
Type-C Software Upgrade
Connect the tester to a computer with a USB data cable through the Type-C interface for software upgrade when available.
데이터 검토
The Review menu helps users check saved or recent test information when supported by the current software version.
Power-Shortage Battery Handling
BT460 can help test batteries with insufficient power under proper voltage conditions, but extremely low voltage may still require charging before a reliable judgment.
Compact Clamp Tester
The 152 × 82 × 30mm body combines a color display, control buttons and red and black battery clamps.
Lead-Acid Battery Coverage
Supports 12 V and 24 V rated lead-acid battery systems with an 8–30 V voltage-testing range and common global test standards. Suitable for cars, motorcycles, vans, trucks, and workshop battery service.
Selectable Test Standards
Supports CCA, IEC, EN, DIN, JIS, GB, and other common battery measurement standards used worldwide.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Separate Each Battery System Check
단계별 진행 상황1 / 5
01
Connect The Clamps
Connect the red clamp to the positive battery pole and the black clamp to the negative pole. Shake the clamps slightly to confirm a firm connection before testing.
02
Select Battery Test
Choose the battery type, test standard, and test range according to the battery label. The tester will provide results within a few seconds under normal conditions.
03
Run Cranking Test
Enter the Cranking Test function and follow the prompt to start the engine. The tester checks the starting motor through cranking voltage and current behavior.
04
Run Charging Test
Enter Charging Test, follow the prompt to increase engine speed to about 2500 RPM for 5 seconds, then press OK to complete the test.
05
Run Maximum Load Test
Select Max Load Test, turn on the vehicle electrical appliances, start the engine as instructed, then press OK to observe battery voltage under vehicle electrical load. This routine uses the vehicle’s electrical loads; it is not a resistive high-current battery load test.
안전한 사용
Keep Loaded Voltage in Context
지원되는 배터리 유형
Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB lead-acid batteries.
공통 테스트 표준
Supports CCA, IEC, EN, DIN, JIS, GB, and other common battery measurement standards used worldwide.
12V / 24V Rated Batteries
Applicable battery rated voltage is 12V / 24V, with an 8–30V voltage measurement range.
Lead-Acid Battery Tester
BT460 is intended for common automotive cranking lead-acid batteries, including Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries.
지원되는 배터리 유형
Designed for supported lead-acid batteries; choose BT960 for lithium battery testing.
Battery and Charging-System Testing
BT460 tests battery and charging-system condition; use separate charging equipment when charging is required.
Clamp Connection Matters
Connect the red clamp to the positive pole and the black clamp to the negative pole. Shake the clamps slightly to make sure they are firmly connected before testing.
High Voltage Reminder
If the vehicle is running or the voltage is too high during the wrong test stage, stop the engine and follow the on-screen prompt before continuing.
Keep The Tester Protected
Do not disassemble the tester, immerse it in water, bend or over-stretch the wires, expose it to high temperature, or use it as a toy for children.
New And Old Versions Shipped Randomly
New and old versions of this product may be shipped randomly. Appearance, packaging, button layout, interface style, or accessory details may vary by batch.
인쇄 요구 사항
Need printed results? Confirm the supplied BT460 configuration with support before ordering.
Use the Results to Plan the Next Check
Use CCA, SOC, and health indicators with the battery rating, charge state, temperature, and vehicle test results. These algorithm-based indicators are not controlled amp-hour measurements.
결과 안내
Understand Battery and System Test Results
측정된 전압
Assess battery health by combining voltage with state of charge, temperature, terminal contact, and the full test result.
CCA or Conductance Output
Compare the tester’s algorithm output with the rating standard and value entered from the battery label. Repeat unexpected results after checking terminal contact and charge state.
SOC and Health/Life
Use SOC and health percentages as screening indicators, and compare them with the battery label, charge state, and repeat test results.
Cranking and Charging
Keep cranking voltage, running-system voltage and loaded-system observations separate. Use the vehicle procedure and operating state to decide the next check.
모델 비교
Choose the Right Battery System Tester
모델 가이드
Choose one or more models. BT460 is selected by default.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | BT360 | BT460 | BT760 | BT880 | BT960 |
|---|---|---|---|---|---|
| Tests, Monitoring & Protection | |||||
| 배터리 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 크랭킹 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 충전 시스템 테스트 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 배터리 충전 | × | × | × | × | × |
| 역 극성 보호 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 최대 부하 시험 | × | ✓ | ✓ | ✓ | ✓ |
| 열 모니터 | × | × | × | ✓ | ✓ |
| 누설 전류 모니터링 | × | × | × | ✓ | ✓ |
| Battery Compatibility & Ranges | |||||
| Conventional Lead-acid Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM Flat Plate Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| AGM 스파이럴 배터리 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 젤 배터리 | ✓ | ✓ | ✓ | ✓ | ✓ |
| EFB Enhanced Flooded Batteries | ✓ | ✓ | ✓ | ✓ | ✓ |
| 리튬 배터리 | × | × | × | × | ✓ |
| Test Range(CCA) | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA | 30~2000 CCA |
| Applicable Battery Rated Voltage | 12V | 12V / 24V | 12V / 24V | 12V / 24V | 12V / 24V |
| 전압 테스트 범위 | 8~20V | 8 ~ 30V | 8 ~ 30V | 8 ~ 30V | 0 ~ 80V |
| Interface, Records & Power | |||||
| 데이터 인쇄 | × | × | ✓ | ✓ | ✓ |
| 데이터 기록 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 소프트웨어 업그레이드 | ✓ | ✓ | × | ✓ | ✓ |
| 컬러 스크린 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 화면 크기 | 2.4 인치 | 2.8inch | 3.2 인치 | 3.2 인치 | 3.2 인치 |
| 다중 언어 | 14 | 14 | 14 | 18 | 14 |
| 전원 공급 장치 | Connect 12V Battery | Connect 12V Battery | Connect 12V Battery | Connect 12V Battery | 건전지 Type-c Power Supply Connect 12V Battery |
사용 설명서 및 지원
Find Manuals and Product Support

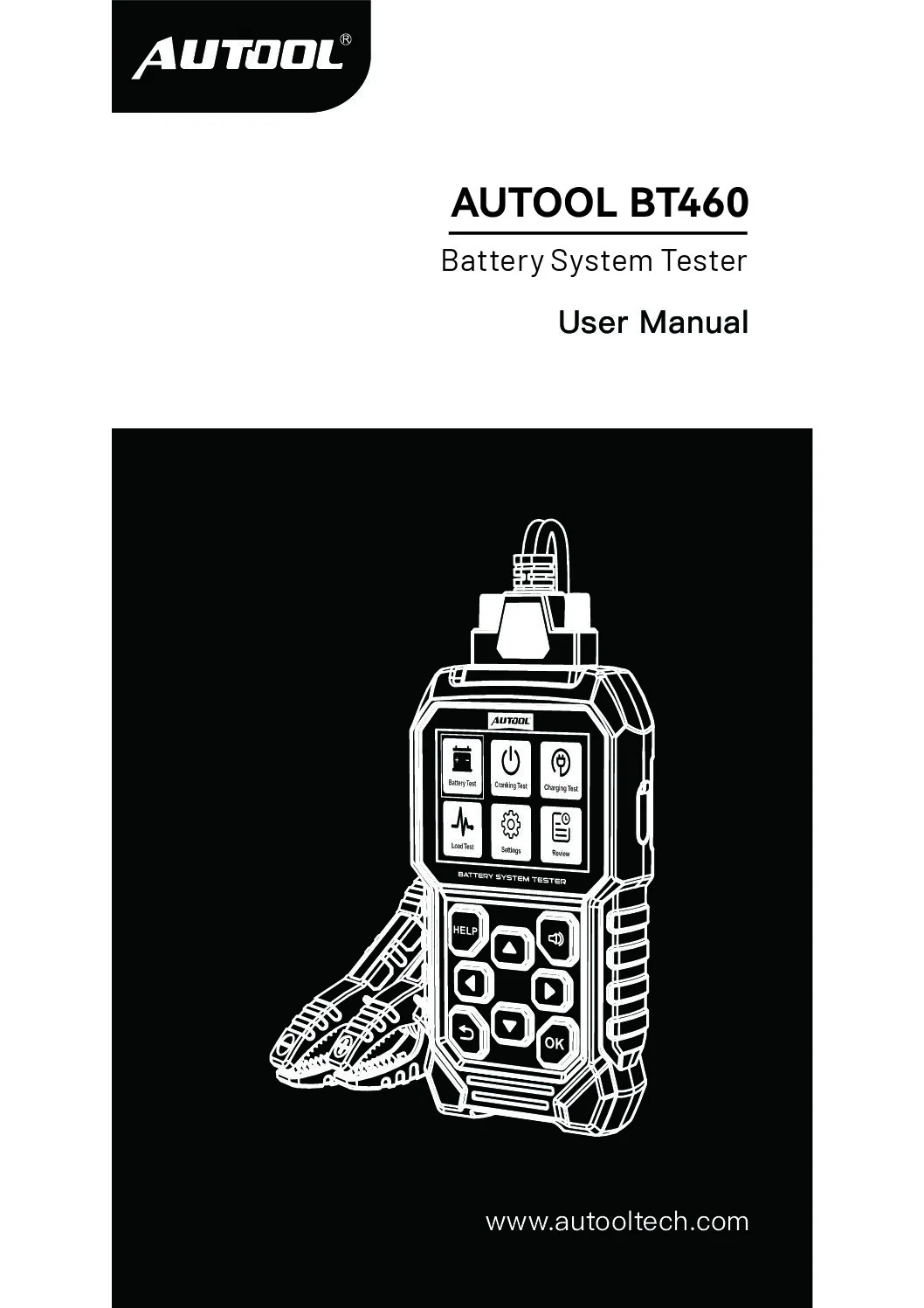

AUTOOL BT460 User Manual
PDF 설명서를 열어보세요 AUTOOL BT460 battery, cranking, charging and maximum-load tests, rating selection, data review, safe clamp connection and troubleshooting support.
패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL BT460 battery and system tester
- 클램프 케이블Red and black battery clamp cable
- 문서사용자 설명서
- 포장BT460 retail box
- 버전 공지New and old versions are shipped randomly; final appearance follows the received product
구매자 질문
Battery Test, Fit and Result Questions
가요 AUTOOL BT460 Support 12V And 24V Batteries?
Yes. BT460 supports 12V and 24V rated battery systems and has an 8–30V voltage measurement range. It is suitable for compatible lead-acid batteries used in cars, motorcycles, vans, trucks, and similar vehicles. Confirm the battery arrangement and follow the BT460 manual; test individual 12V batteries separately when the vehicle procedure requires it.
What Battery Types Can BT460 Test?
BT460 can test common automotive cranking lead-acid batteries, including Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries. Select the correct battery type on the tester before starting the battery test.
Does BT460 Support Lithium Batteries?
For lead-acid batteries only; choose a lithium-capable model for lithium batteries.
Does BT460 Have A Built-In Printer?
Need printed results? Confirm the supplied BT460 configuration with support before ordering.
What Is The Difference Between BT460 And BT360?
BT460 adds the documented loaded-system voltage observation and uses a 2.8-inch screen. BT360 is the 12V entry model with a 2.4-inch screen and no maximum-load menu. Both support lead-acid battery, cranking and charging checks, but their input ranges and supported system objects differ.
What Is The Difference Between BT460 And BT760?
BT760 adds data printing and a 3.2-inch screen. BT460 has a 2.8-inch screen and is shown without data printing in the current comparison chart. Choose BT760 if a printed test report is required.
What Is The Difference Between BT460 And BT880?
BT880 adds thermal monitoring, leakage current monitoring, data printing, 18 languages, and a 3.2-inch screen. BT460 is more compact and keeps battery, cranking, charging, maximum load, data records, software upgrade, and reverse polarity protection, but it does not include BT880’s advanced monitoring functions.
Can BT460 Charge Or Repair Batteries?
BT460 is a battery and charging-system tester; charging and repair require separate equipment.
What Should I Do If The Battery Voltage Is Too Low?
If the voltage is too low, the tester may not complete a normal judgment and may display a charge or retest prompt. Charge the battery first when needed, then reconnect the clamps firmly and test again.
How Do I Run The Charging Test?
Enter the Charging Test function, follow the tester prompt, increase engine speed to about 2500 RPM for 5 seconds, and then press OK. The tester checks generator output, rectifier behavior, and charging voltage status.
What Standards And Test Ranges Does BT460 Support?
BT460 supports CCA 30–2000, IEC 30–2500, EN 30–3000, DIN 30–2500, JIS 26A17R–N135, and GB 30–300AH. Select the standard that matches the battery label before testing.
Which Languages Are Available?
BT460 supports 14 languages: English, Spanish, German, French, Italian, Portuguese, Chinese, Polish, Turkish, Russian, Japanese, Traditional Chinese, Thai, and Korean. Contact support before ordering if you need confirmation for a specific language or customization request.
Can BT460 Be Updated By Computer?
Yes. BT460 has a Type-C interface and can be connected to a computer with a USB data cable for software upgrade when upgrade files and instructions are available.
패키지 구성품은 무엇인가요?
Package contents: BT460 main unit, battery clamp cable, user manual, and retail box. Appearance and accessory details may vary by production batch.
Why Are New And Old Versions Shipped Randomly?
Product batches may include new and old versions during version transition. Function descriptions, interface appearance, and packaging can differ slightly. If a specific function, appearance, or accessory is important, contact support before ordering.
보증 기간은 얼마나 되나요?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
