AUTOOL AST618 Four-Wheel Pulsating Brake Fluid Exchanger
US$899.00
주요 특징
- Four-Wheel Simultaneous Exchange
- 0.6–3.0 Bar Range
- Pressure, Pulse + Time Controls
- 3 L Pot + Four Recovery Bottles
- Four-Wheel Simultaneous Exchange: Connect all four brake calipers for one-person fluid replacement.
- 0.6–3.0 Bar Range: Adjust working pressure from 0.6 to 3.0 bar, starting at the lowest suitable pressure for the vehicle procedure.
- Pressure, Pulse + Time Controls: Set pressure, pulse, and working time; the machine can stop if fluid supply is abnormal or pressure cannot build.
- 3 L Pot + Four Recovery Bottles: Supply fresh fluid from the stainless-steel pot and collect old fluid in four bottles.
- 17-Piece Adapter Set: Match varied reservoir designs with the included adapter set.
- 3 - 년 보증 본체 3년, 부속품 1년
- 90- 일 반품 90일 이내 반품 가능
- 공식 스토어 정품 · 직접 지원
AUTOOL AST618 · Four-Wheel Pulsating Brake Fluid Exchanger
Connect Four Calipers for One Controlled Service
AUTOOL AST618 connects all four brake calipers for controlled, one-person fluid replacement. AST618 lets the operator set pressure, pulse, and working time from the digital panel, supplies fresh fluid from a stainless-steel pot, and collects used fluid in four bottles. A 17-piece adapter set and mobile 12 V trolley support varied workshop vehicles.
- Four-Wheel Simultaneous Service
- 0.6–3.0 bar Adjustment
- 3 L Stainless Fresh-Fluid Tank
- Four 1.5 L Recovery Bottles
- 17 Reservoir Adapters
주요 특징
Digital Pressure, Pulse and Time Control
Four-Wheel One-Person Exchange
Connect all four brake calipers for simultaneous fluid exchange. After preparing the fluid, matched reservoir adapter, sealed connections, and four recovery bottles, one technician can start the service.
Pulse One-Button Replacement
After setting pressure, pulse, and working time on the digital panel, one technician can start the automatic brake-fluid replacement process.
Adjustable Digital Controls + Protection
Set pressure, pulse, and working time; use pause/start and relief-pressure/stop controls while viewing the working parameters. The machine can stop if the new-fluid supply is abnormal, pressure cannot build, or the pump draws in air, helping reduce the risk of air entering the brake line.
3L Stainless-Steel Brake Fluid Tank
The 3L stainless-steel brake fluid tank is corrosion-resistant, collision-resistant, and durable for workshop use.
17-Piece Reservoir Adapter Set
Match the supplied 17-piece adapter set to varied reservoir designs across many European, American, and Asian vehicle models.
Equipment-Side Priming
Prime the machine fluid path before first use and whenever the path is opened or the brake-fluid type changes, then keep the reservoir connection sealed during service.
Mobile Trolley Structure
Move the AST618 on four rollers with its three-section telescoping handle; hanging hooks and hose-storage details organize it around the workshop.
Pulse Pressure Exchange
Pulse pressure delivers fresh fluid to the reservoir at the selected working pressure while used fluid is drained from each caliper in the prescribed sequence until new clean fluid flows out, helping reduce the chance of air bubbles compared with basic pressurized filling.
3.5 m Tubing
The listed 3.5 m tubing supports routing service connections around the vehicle.
3년 보증 지원
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
서비스 워크플로
Prime, Connect Four Lines and Monitor Flow
단계별 진행 상황1 / 8
01
Prepare The Vehicle
Raise the vehicle to a suitable height so the drive wheels are not on the ground. The vehicle does not need to be started.
02
Connect Four Outlet Hoses
Connect the machine’s four oil ports to the vehicle brake cylinders, then loosen the bleeder screws on the brake cylinders as required.
03
Add Fresh Brake Fluid
Add compatible fresh brake fluid into the oil filling port according to the tank capacity, vehicle requirement, and manual instructions. Do not overfill.
04
Connect The Reservoir Adapter
Select the matching connector and connect the filling hose to the brake master cylinder reservoir.
05
Connect DC 12V Power
Connect the machine to a DC 12V vehicle battery and turn on the power switch.
06
Start The Exchange
Press the Vacuum Switch, then press the Fuel Switch to start changing brake fluid.
07
Adjust Refilling Speed
During the process, watch the brake oil tank mouth. If refilling is too slow, press the acceleration switch. If it is too fast, press the deceleration switch.
08
Drain Used Oil After Service
After the oil change, drain the used oil from the equipment tank completely to help protect the vacuum pump and maintain future operation.
안전한 사용
Control 12V Power, Pressure and Reservoir Level
공장 압력 설정
The pressure regulator is set around 1-1.5bar before delivery to help protect the brake fluid reservoir and secondary sealing ring during fluid exchange.
과도한 압력을 피하십시오
Lower-pressure bleeding or fluid exchange is possible. Higher working pressure should only be used when appropriate; excessive pressure may damage the brake master cylinder or related brake components.
Check Every Connection
Before changing oil, check each connection for leaks and inspect the connecting hoses for damage.
No Engine Start Needed
The vehicle does not need to be started during the brake fluid exchange operation.
유체 라인을 준비합니다
지정된 브레이크액으로 공급 라인을 채우고 차량에 연결하기 전에 공기를 빼내십시오.
모델 비교
올바른 브레이크액 빼기 도구를 선택하세요
모델 가이드
하나 이상의 모델을 선택하십시오. AST618가 기본값으로 선택되어 있습니다.
1개 모델이 선택되었습니다.
선택된 모델이 없습니다. 비교할 모델을 선택하세요.
| 제품명 | AST603 | AST605 | AST609 | AST612 | AST618 |
|---|---|---|---|---|---|
| 서비스 방식 및 용량 | |||||
| 작동 원리 | 완전 자동 원클릭 맥동식 오일 교환 | 완전 자동 원클릭 맥동식 오일 교환 | 완전 자동 원클릭 맥동식 오일 교환 | 완전 자동 원클릭 맥동식 오일 교환 | |
| 오일병 | 1리터 · 폐식용유 병 1개 | 1리터 · 폐식용유 병 1개 | 1.5L · 오래된 기름병 1개 1리터 · 새 오일 병 1개 | 1.5L · 오래된 기름병 2개 1리터 · 새 오일 병 1개 | 1.5리터 · 오래된 기름병 4개 3리터 · 일체형 스테인리스 스틸 오일통 1개 |
| 브레이크 캘리퍼 개수 | 1pc | 1pc | 2pcs | 2pcs | 4pcs |
| 차단 압력 해제 기능 | × | × | × | 30초 압력 완화 시간 | 10초 압력 완화 시간 |
| 동시에 교체된 브레이크 캘리퍼 개수 | 단일 휠 오일 교환 | 단일 휠 오일 교환 | 두 바퀴 동시 오일 교환 | 두 바퀴 동시 오일 교환 | 네 바퀴 동시 오일 교환 |
| 최대 출력 유량 | 1.6L / 분 | 1.6L / 분 | 1.6L / 분 | 2.6L/분 | 1.6L / 분 |
| 펄스 설정 | × | × | × | × | ✓ |
| 작동 압력 조절 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 근무 시간 설정 | × | × | × | × | ✓ |
| 전력, 압력 및 연결 | |||||
| 입력 전압 | AC 110/220V 또는 DC 12V — 선택한 전원 구성과 일치시키세요 | 110 / 220V | 110/220V 또는 12V | DC12V | DC12V |
| 사용 압력 | 0.5-2.5bar | 0.7-3bar(±0.2bar) | 0.5-2.5bar | 1.5바~3.0바 | 0.6-3.0bar |
| 호환 커넥터 | 1 타입 | 3 유형 | 7 유형 | 9 유형 | 17 유형 |
| 압력계 | ✓ | ✓ | ✓ | ✓ | ✓ |
| 항공용 전원 플러그 | ✓ | ✓ | ✓ | × | × |
| 이동성 및 물리적 설정 | |||||
| 제품 무게 | 5.2kg | 5.3kg | 7.4kg | 8kg | 23.5kg |
| 360° 캐스터 | × | × | × | × | ✓ |
| 3단 접이식 손잡이 디자인 | × | × | × | × | ✓ |
사용 설명서 및 지원
매뉴얼 및 출혈 지침을 찾아보세요

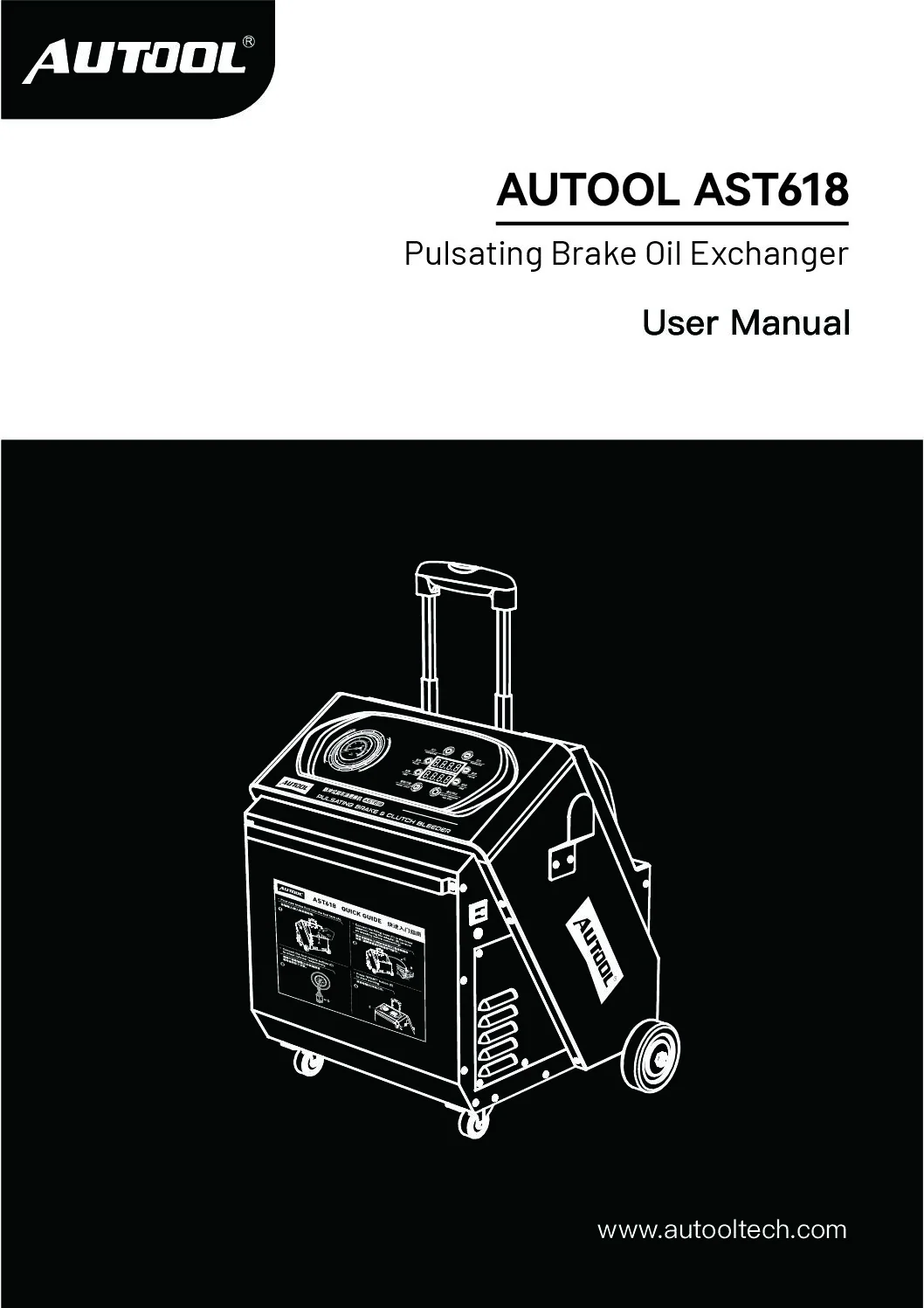

AUTOOL AST618 사용자 설명서
PDF 설명서를 열어보세요 AUTOOL AST618 four-wheel brake-fluid exchange, pressure, pulse and time settings, adapter setup, priming, fluid monitoring, safety and troubleshooting support.
패키지 내용물
상자 안에 무엇이 들어 있는지 확인해 보세요
- 본체AUTOOL AST618 pulsating brake fluid exchanger
- 어댑터 키트17-piece adapter set
- Used Brake Fluid BottlesFour used brake fluid bottles
- 전원 케이블DC 12V battery clamp power cable
- ManualAUTOOL AST618 user manual
- 묶음AST618 retail box
구매자 질문
블리더 설치, 어댑터 및 유체 관련 질문
이것은 AUTOOL AST618 Used For?
AUTOOL AST618 is used for brake and clutch fluid exchange on 12V vehicles. It is designed for workshop brake fluid service, supports pulse pressure exchange, and can connect to four brake calipers for simultaneous brake oil exchange.
AST618는 어떤 종류의 브레이크액과 호환되나요?
AST618 supports DOT3, DOT4, and DOT5.1 brake fluid types. Always choose the brake fluid specified by the vehicle manufacturer and avoid contamination from air, water, or debris during service.
Can AST618 Exchange Brake Fluid For Four Wheels At The Same Time?
Yes. AST618 is designed for four-wheel simultaneous brake oil exchange. It includes four used-oil bottles and can connect to four brake calipers, helping improve efficiency for large workshops.
What Working Pressure Should I Use?
Factory-set pressure: 1–1.5 bar. Adjustable range: 0.6–3.0 bar. Start at the lowest suitable pressure and follow the vehicle manufacturer’s procedure.
Does The Vehicle Need To Be Started During Operation?
No. The vehicle does not need to be started during the AST618 brake fluid exchange operation.
브레이크액 교환 전에 무엇을 점검해야 할까요?
Check every connection for leaks, inspect the connecting hoses for damage, select the correct adapter, keep the new oil filler port clean, and confirm the brake fluid type required by the vehicle.
How Do I Use The AST618 Controls During Exchange?
After connecting the machine and adding fresh brake fluid, connect the DC 12V power, turn on the power switch, press the Vacuum Switch, then press the Fuel Switch. During the process, watch the brake oil tank mouth. If refilling is too slow, press the acceleration switch. If it is too fast, press the deceleration switch.
What Should I Do After Finishing The Oil Exchange?
Drain the used oil from the equipment tank completely after the oil change. If used oil remains in the tank, it may damage the vacuum pump and prevent future oil exchange operations.
AUTOOL AST603 vs AST605 vs AST609: What Is The Difference?
AST605 includes more compatible connectors than AST603 while the main parameters are similar. AST609 includes seven compatible connectors, one 1.5L used-oil bottle, one 1L new-oil bottle, and supports two-wheel simultaneous oil exchange. AST603 and AST605 are single-wheel oil change models with a maximum output flow of 1.6L/min, while AST609 also lists 1.6L/min in the current comparison chart and is designed for faster two-wheel workflow.
AUTOOL AST612 vs AST618: Which One Should I Choose?
Choose AST612 if you need a DC12V two-wheel brake fluid exchanger with nine adapter types. Choose AST618 if you need higher workshop efficiency with four-wheel simultaneous oil exchange, four 1.5L used-oil bottles, a 3L stainless-steel oil pot, 17 adapter types, pulse settings, working time settings, 360° casters, and a three-section telescoping handle.
What Accessories Are Included With AST618?
Package contents: AST618 main unit, retail box, 17-piece adapter case, DC 12 V power cable, user manual, and four used-oil bottles.
보증 기간은 얼마나 되나요?
본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
