AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
  1. AUTOOL SDT205 Automotive Smoke Leak Detector
  2. AUTOOL SDT205 Automotive Smoke Leak Detector
  3. AUTOOL SDT205 Automotive Smoke Leak Detector
  4. AUTOOL SDT205 Automotive Smoke Leak Detector
  5. AUTOOL SDT205 Automotive Smoke Leak Detector
  6. AUTOOL SDT205 Automotive Smoke Leak Detector
  7. AUTOOL SDT205 Automotive Smoke Leak Detector
  8. AUTOOL SDT205 Automotive Smoke Leak Detector
  9. AUTOOL SDT205 Automotive Smoke Leak Detector
  10. AUTOOL SDT205 Automotive Smoke Leak Detector
  11. AUTOOL SDT205 Automotive Smoke Leak Detector
  12. AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector
AUTOOL SDT205 Automotive Smoke Leak Detector

AUTOOL SDT205 Automotive Smoke Leak Detector

(25 고객 리뷰)

US$199.00

주요 특징
  • Air + Smoke Modes
  • Built-In Air Pump
  • Visual Pressure Gauge
  • Multi-System Low-Pressure Checks
주요 특징
☰ 대량/B2B 견적 요청공식 견적 요청
  • 3 - 년 보증 본체 3년, 부속품 1년
  • 90- 일 반품 90일 이내 반품 가능
  • 공식 스토어 정품 · 직접 지원

AUTOOL SDT205 · Smoke Leak Detector with Air and Smoke Modes

Check with Air Before Tracing with Smoke

Use this automotive smoke leak detector in Air Mode to monitor pressure without adding smoke, then switch to Smoke Mode to reveal the visible leak path. SDT205 integrates its own air pump and pressure gauge for permitted low-pressure intake, exhaust, sealing, fuel-tank, line-fitting, EVAP, and vacuum-system checks in workshop or mobile use.

  • Separate Air And Smoke Modes
  • Built-In Pump, No Shop Air
  • Pressure-Gauge Feedback
  • About 5-Second Smoke Start
  • Permitted Low-Pressure Systems

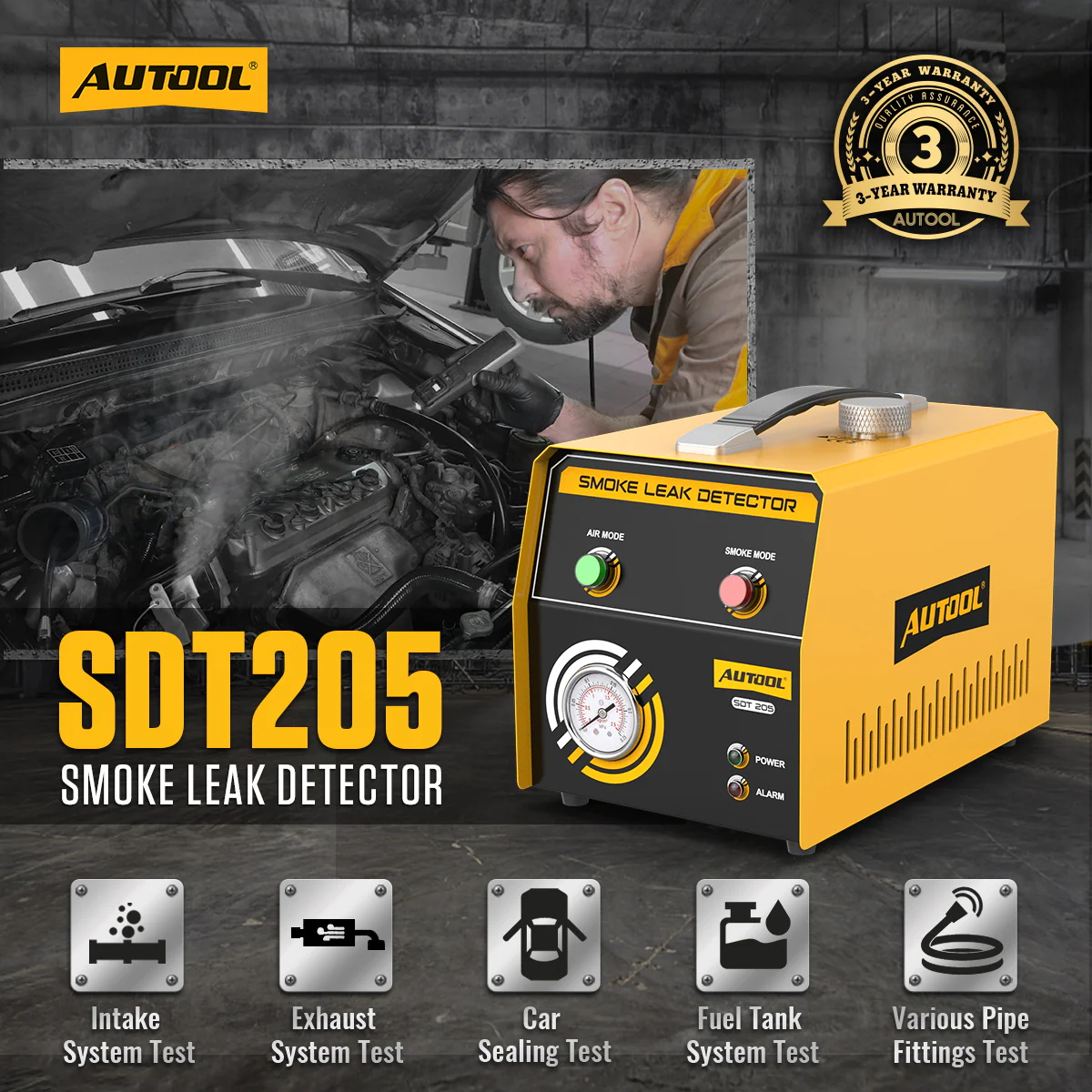

AUTOOL SDT205 smoke leak detector

주요 특징

Separate Air and Smoke Modes with a Built-In Pump

Air Mode and Smoke Mode

Independent Air Mode and Smoke Mode switches let you use Air Mode for pressure monitoring and Smoke Mode for visual leak location.

Visual Pressure Gauge

The pressure gauge lets you monitor pressure changes. A pressure drop may indicate a line leak that needs further inspection and repair.

Smoke Starts in About 5 Seconds

The unit starts producing smoke quickly. Allow about 30 seconds for the connected test line to fill, then inspect for escaping smoke.

Built-In Air Pump

No external air compressor is required. The integrated air pump saves setup time and is convenient for mobile automotive repair.

Intake / Exhaust / EVAP / Vacuum Leak Checks

Supports low-pressure leak checks for intake, exhaust, vehicle sealing, fuel tank, line fittings, EVAP, and vacuum systems.

Portable Workshop Design

A compact body, handle, cone adapter, and airbag adapter make the unit practical for workshop and mobile repair use.

3년 보증 지원

본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.

이용 방법

Seal, Use Air Mode, Observe, Add Smoke, and Inspect

단계별 진행 상황1 / 5
01

Add Testing Oil

Fill 10–15 mL baby oil or liquid paraffin into the detector before use. Do not overfill.

안전성 및 호환성

Confirm Pressure Limits and Normal Vent Paths

12V Power and Built-In Air Pump

Connect SDT205 to a 12V DC battery before use. The built-in air pump provides the test airflow, so you do not need an external compressor.

Use the Pressure Gauge to Watch Test Pressure

Monitor pressure on the gauge while staying within the vehicle or component service limit. SDT205 outputs under 15 psi and 6 L/min and has no flow adjustment.

Testing Oil Is Not Included

Testing oil is not included. Use liquid paraffin or baby oil and add 10–15 mL before use.

Limit Continuous Use to 8 Minutes

Do not run SDT205 continuously for more than 8 minutes. Automatic overheat protection shuts off power above 75°C. Let the unit cool before restarting.

Do Not Use for Direct High-Pressure A/C Testing

SDT205 cannot directly pressure-test an automotive A/C high-pressure system. If a service procedure permits smoke on an isolated A/C line section, follow that procedure and use smoke only as an indirect visual aid.

Trace the Smoke Path

Follow the visible smoke path to inspect the leak area. If no smoke appears, verify isolation, valve state and smoke delivery before changing test methods.

Never Refill While Running

Do not refill testing oil while SDT205 is running.

Check Procedure Before Smoke Testing

Follow the vehicle or component service procedure before introducing smoke into a system.

Gauge Monitors Pressure Only

Use the pressure gauge to monitor the test, not to set or increase pressure.

Avoid Hot Metal Housing

Avoid touching the metal housing when it is hot.

시험 결과

Separate Pressure Response from Visible Smoke

압력 변화

Use the pressure change to choose the next inspection, then confirm the leak path with smoke or the applicable service test.

Visible Smoke Escape

Check that the outlet is not an intentional opening, then inspect, repair and retest the exact area.

No Visible Smoke

Verify access, isolation, valve state and smoke delivery before moving to functional diagnosis or another test method.

모델 비교

Compare Air and Smoke Controls

모델 가이드

Choose one or more models. SDT205 is selected by default.

1 model selected

AUTOOL SDT205 is selected. Choose another model for a side-by-side comparison.

SDT205 comparison

비교 AUTOOL 연기 누출 감지기
제품명SDT205
Smoke Output & Protection
작동 원리
Low Oxygen Combustion
Test Oil Filling Volume
10-15ml
정격 출력 압력
<15 psi machine-rated output; use the target-system procedure.
Rated Output Flow
＜6L/min
고온 보호
Stops working above 75°C
평균응답시간
Produces smoke in 5 seconds
Power & Physical Size
입력 전원
DC12V
정격 전력
65W
Net Weight (Main Unit)
3.2kg
본체 치수
295mm * 295mm * 207mm
모니터링 및 제어
Flow Meter Window
×
압력계
✓
Air Source Type
Built-in Air Pump
Mode Output
에어 모드
Smoke Mode
Dual Pressure Mode
×
Flow Adjustment Knob
×
오일 드레인 밸브
✓
오류 표시등
✓
오일 레벨 게이지
×

Manual & Downloads

Use the Manual for Setup and Test Pressure

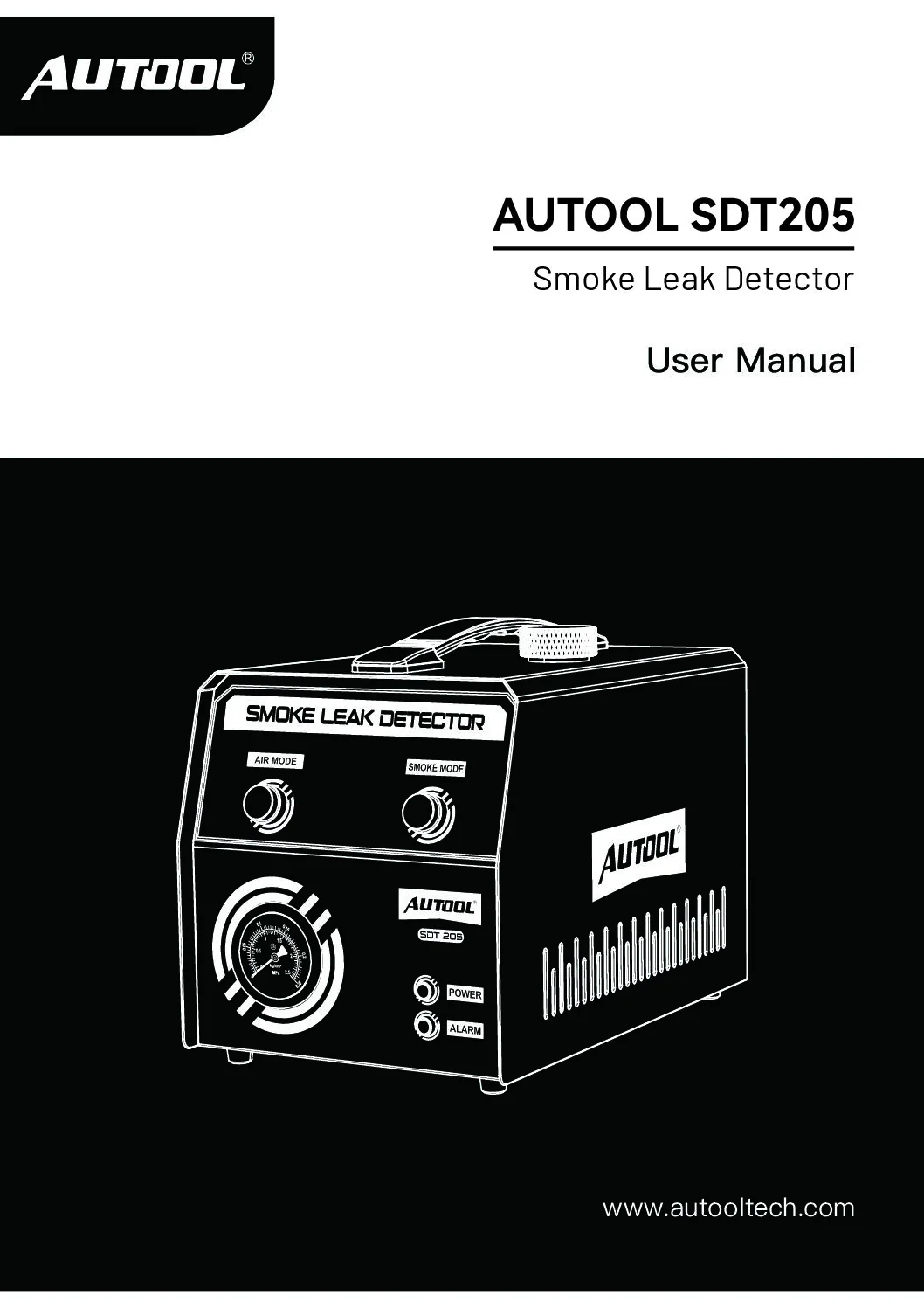

AUTOOL SDT205 user manual cover
Manual / PDF

AUTOOL SDT205 User Manual

Open the PDF manual for SDT205 Air and Smoke modes, pressure monitoring, permitted leak tests, test-oil handling, operating safety, and troubleshooting.

매뉴얼 다운로드

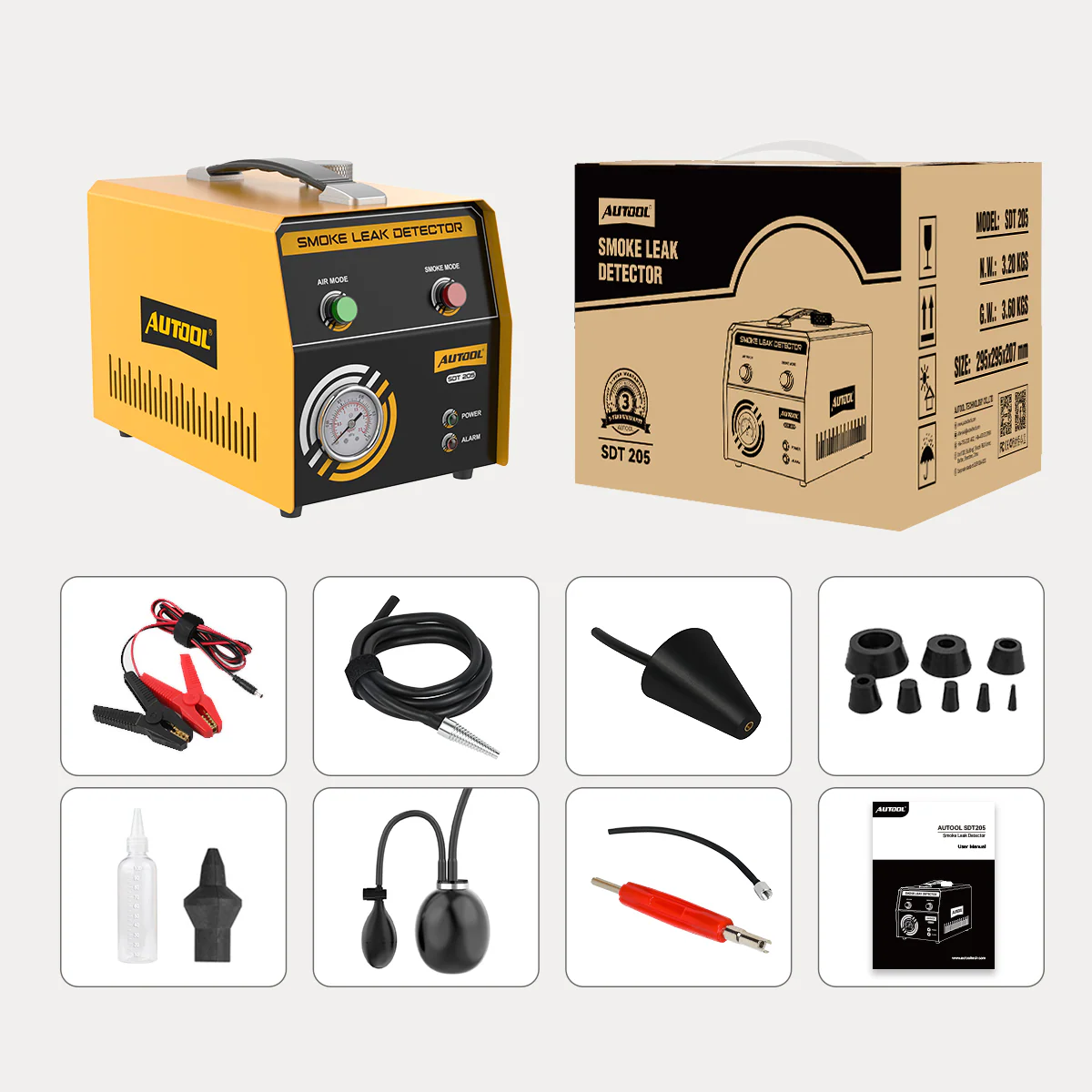

AUTOOL SDT205 package contents

묶음

포함 된 것

  • Power cord ×1포함 사항
  • Smoke outlet hose ×1포함 사항
  • Cone adapter ×1포함 사항
  • Valve core wrench ×1포함 사항
  • EVAP connector ×1포함 사항
  • Filling bottle ×1포함 사항
  • Universal airbag adapter ×1포함 사항
  • Universal hard rubber plug ×1 set포함 사항
  • Universal small adapter ×1포함 사항
  • 사용 설명서 × 1포함 사항

자주 묻는 질문

Air Mode, Smoke Fluid, and Fit Questions

What Testing Oil Should I Use for SDT205?

Testing oil is not included. If dedicated smoke-testing oil is unavailable, use liquid paraffin or baby oil.

How Much Testing Oil Should I Add?

Add 10–15 mL testing oil before use. Do not add more than 15 mL each time. Refill only when the smoke becomes thin, and drain remaining old testing oil before adding fresh testing oil. If too much oil is added accidentally, drain some oil out before operation.

Can I Use SDT205 as an EVAP Smoke Machine?

예. AUTOOL smoke leak detectors can test leaks in EVAP systems. Use the EVAP adapter or service tool that matches the vehicle test port.

Can SDT205 Directly Test Automotive A/C System Leaks?

No. Automotive A/C systems operate at about 1.7–3.0 MPa output pressure, while SDT205 has rated output pressure below 15 psi. SDT205 cannot directly pressure-test an automotive A/C system for leaks. Use smoke only to help inspect an A/C line section after isolating and pressurizing it according to the service procedure.

How Can Smoke Help Locate a Leak in an Isolated A/C Line Section?

First isolate and pressurize the A/C line segment according to the vehicle or A/C service procedure. Then apply smoke near the test section and observe whether escaping airflow disturbs the smoke. If escaping air moves the smoke, inspect that area for a possible leak.

What Systems Can SDT205 Test?

SDT205 supports low-pressure leak checks for intake, exhaust, vehicle sealing, fuel-tank, line-fitting, EVAP, and vacuum systems. Do not introduce smoke into any component or system that the vehicle or component service procedure excludes from smoke testing.

What Power Supply Does SDT205 Need?

SDT205 runs on a 12V DC vehicle battery. Connect it to a 12V battery before operation, and do not use it outside its intended 12V DC power requirement.

Can I Adjust the Pressure on SDT205?

SDT205 uses fixed output below 15 psi. If separate Standard and EVAP pressure modes are required, compare SDT208. Use SDT205 only within its specified low-pressure range.

How Does SDT205 Differ from SDT205S?

Both SDT205 and SDT205S have a built-in air pump, pressure gauge, Air Mode, Smoke Mode, oil drain valve, and <15 psi output pressure. SDT205S adds a flow meter window and flow adjustment knob, while SDT205 does not include these flow adjustment features.

어떻게해야합니까? AUTOOL Smoke Leak Detector Models Differ?
  • External-air EVAP: SDT101/103 — 3.2 kPa (0.46 psi).
  • Built-in pump: SDT106 <12 psi; SDT203/205/205S <15 psi; SDT206 dual pumps <18 psi.
  • Dual pressure: SDT208 — 35 psi Standard / 10 psi EVAP.

Also compare flow, modes, gauges, oil drainage, and accessories.

What Accessories Are Included?

Accessories vary by model and package option. Depending on the model, the package may include hard rubber adapters, a cone adapter, an airbag adapter, EVAP testing tools, a smoke hose, and a power cable. It may also include an empty testing oil bottle, user manual, warranty card, and quality certificate. Check the product listing for the exact items included with your selected package.

How Long Is the Warranty for SDT205?

본체: 3년 보증. 표준 부속품: 1년 보증. 보증 정책.
